C1204-528

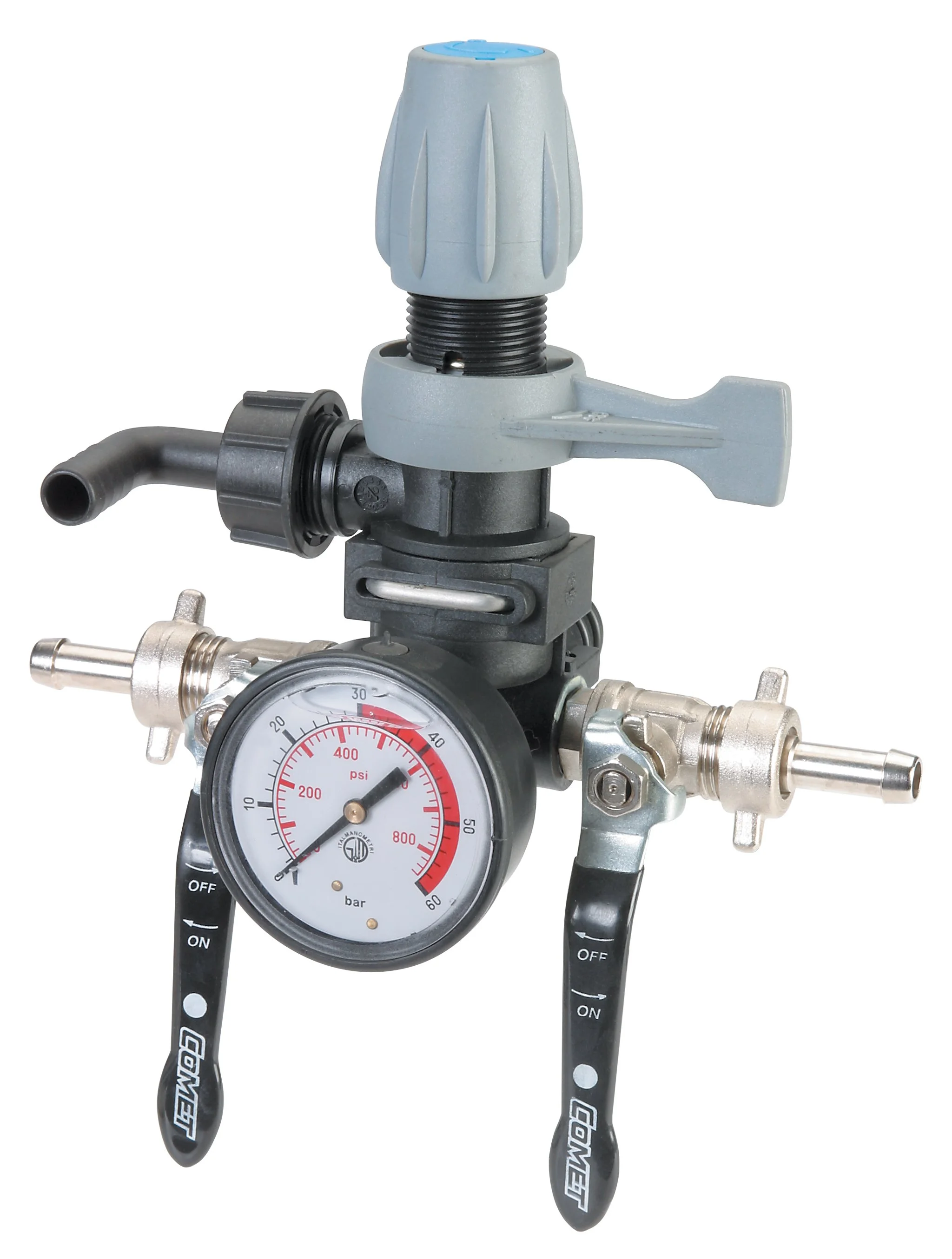

2 OUTLET ON/OFF CONTROL VALVE
Comet control valves regulate spray pressure, direct the flow of spray liquid from the pump to the spray nozzles and bypass excess liquid back to the tank, in most cases through an agitator. All feature adjustable pressure regulator, glycerine filled gauge, hose connections, mounting kits where applicable, on/off directional valves and bypass lock position. 2 outlet control, pressure regulator, bypass valve, gauge.
Specifications
PUMP SIZE (L/MIN): 40
MAX PRESSURE: 14 Bar/218 psi
HOSE INLET: 19mm
SIZE OUTLET: 13mm
BYPASS HOSE: 13mm
CONTROL VALVE: 2 Outlet
PUMP: BP20/15
