IDS 2200 - 2600
High pressure diaphragm pump
Configuration: 6 diaphragms in NBR (Desmopan® and Viton available on request).
Parts in contact with spray liquid: brass.
Standard: safety valve.
On request: PTO protection.
Available versions with adjustment valves and pressure gauge and versions without adjustment valves and without pressure gauge.
Uses
For medium to large dimension crop spraying.
Pump Literature

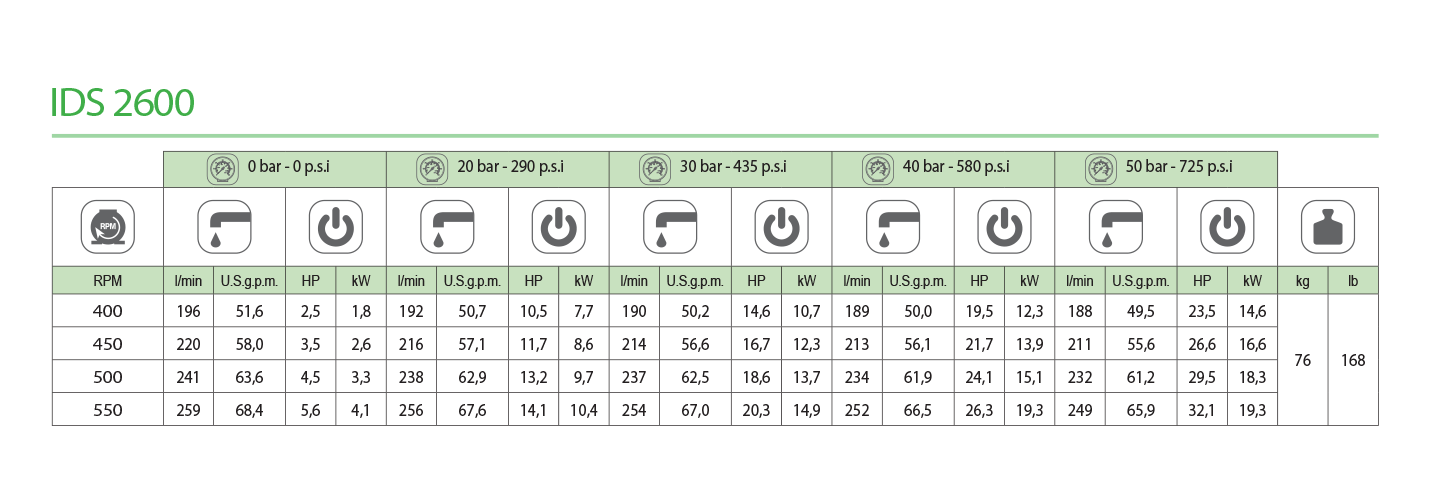

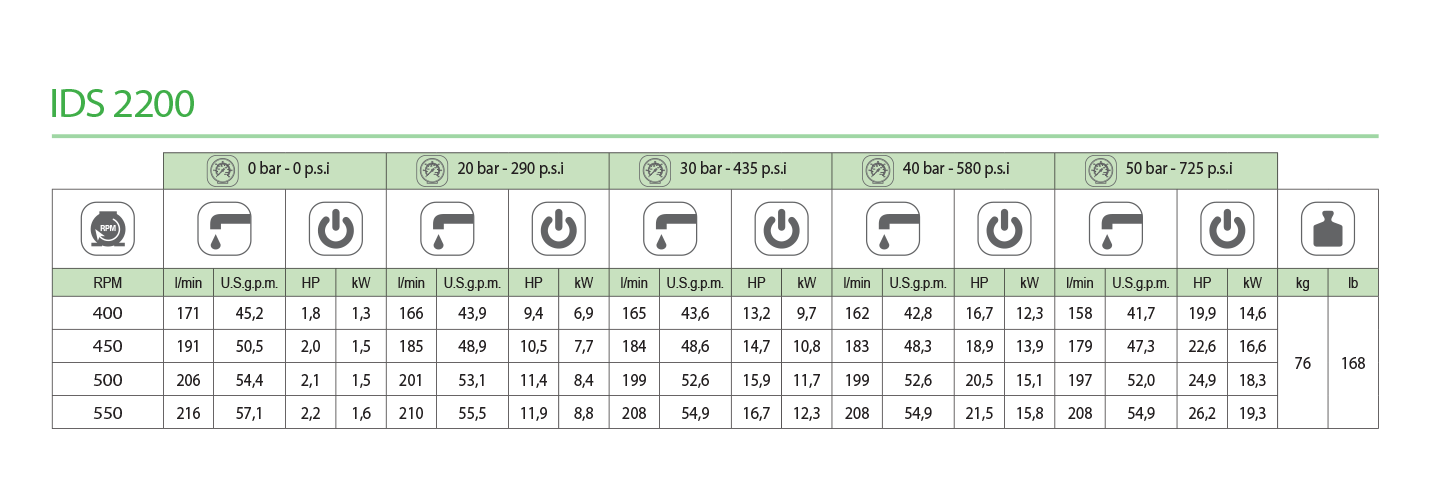

Technical Data
